Vindsol Heat PumpsSupplied & supported by Wateria Technovation
DOMESTIC | COMMERCIAL & INDUSTRIAL | POOL & SPA | THERMODYNAMIC SOLAR
Next-generation air source and thermodynamic solar heat pumps for homes, hotels, hospitals, industry and swimming pools, designed and made in Bangalore. Wateria Technovation selects, supplies, installs, commissions and services Vindsol heat pumps across India and the Middle East.
Hot Water Audit · Sizing · Supply · Installation · Commissioning · AMC
VIND = WIND + SOL = SOLAR: HEAT FROM NATURE'S ENERGY
FEATURED TECHNOLOGY
Vindsol presents it as the world's most advanced solar heat pump. It joins a heat pump and a solar collector, and overcomes the limits of both: hot water day or night, in rain, wind or shine.

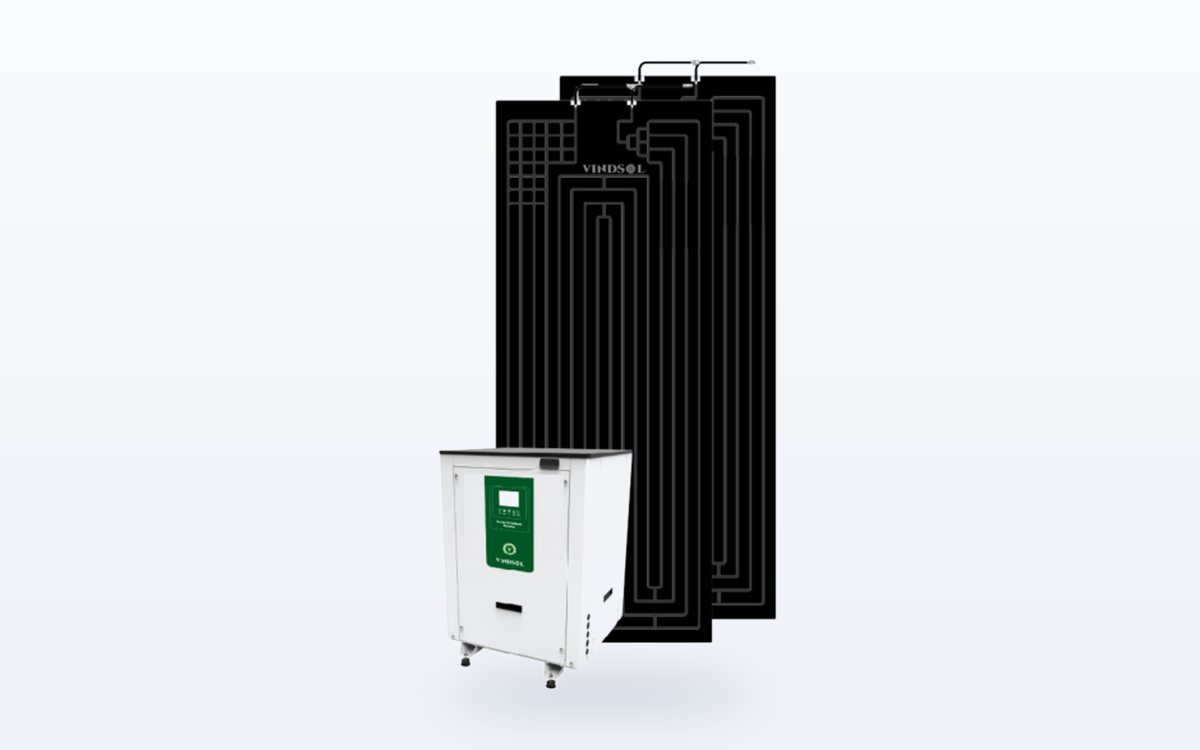

HPVINDSOL · THERMODYNAMIC SOLAR
A refrigerant that boils at about −30 °C circulates through a roll-bond aluminium panel and picks up heat from the surroundings, even when there is no sun. A small heat-pump compressor then transfers that heat to the water. There is no fan and no defrost cycle, so it uses about as much power as a fridge compressor.
Available as: an all-in-one domestic unit with a 200 or 300 L tank, and commercial systems from 3.6 to 24.2 kW for hotels, resorts, malls, schools and industry.
VINDSOL PRODUCT RANGE
From a 3 kW heat pump for a family home to modular commercial plants and 137 kW pool heat pumps. Every Vindsol heat pump uses a heat-pump-specific compressor, not an air conditioning compressor, for higher water temperatures and longer life.
01VDHP series · 3.2 – 10.2 kW
A compact outdoor unit with a built-in copper tube-in-tube heat exchanger and circulating pump. It retrofits to any existing geyser or storage tank and gives 80 to 250 litres an hour of hot water at 55 °C without an electric element.
Request Datasheet →

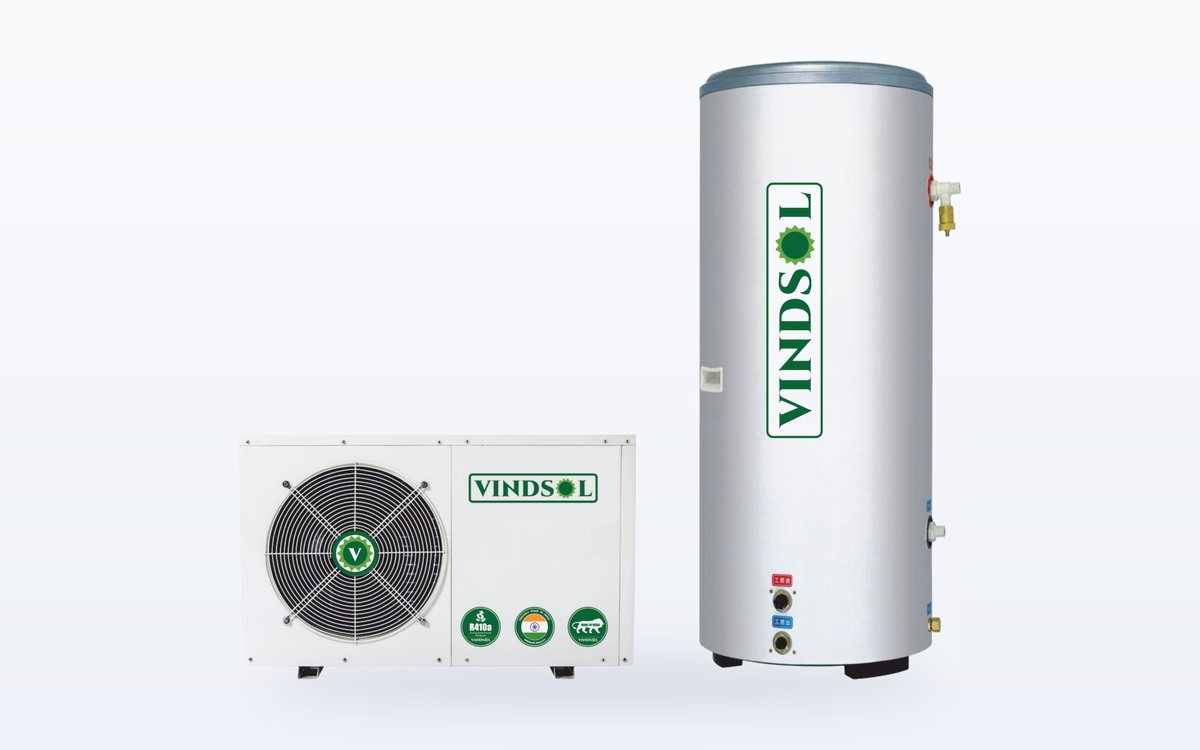

02Micro-channel heat exchanger on the tank
A high-efficiency micro-channel heat exchanger is wrapped around the outside of the pressurised storage tank, so water never passes through the outdoor unit. Ideal for villas, apartments and bungalows.
Request Datasheet →
03VCHP series · 11.4 – 89.9 kW per unit
Large air-to-water and water-to-water heat pumps for hotels, hospitals, hostels, sports centres, factories and apartment blocks. Units can be combined in modules to heat almost any daily volume.
Request Datasheet →
04VCSP series · 13.5 – 137.2 kW · COP up to 5.7
They heat the pool in winter and work as chillers in summer. The tropical design runs at ambient temperatures up to 45 °C without the compressor tripping, which suits Indian and Gulf summers.
Request Datasheet →

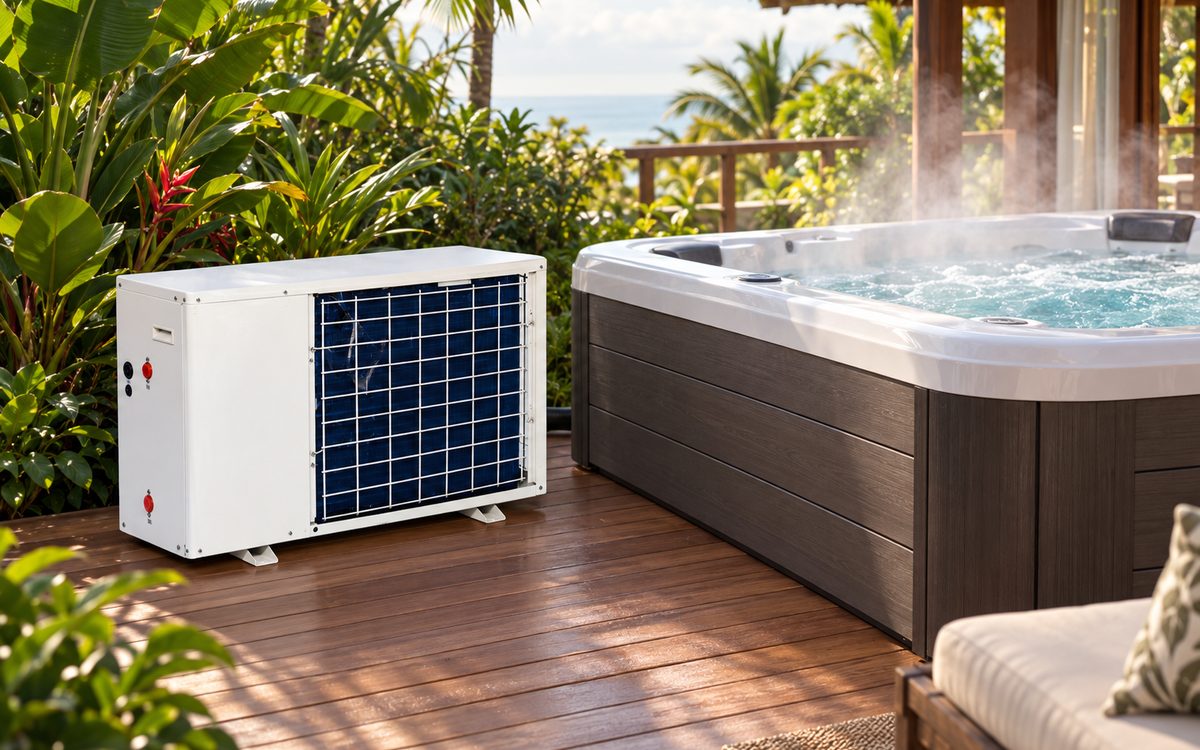

05VSP series · 4.5 – 13.5 kW
Compact heat pumps for spas, hot tubs, plunge pools and small residential pools. Heat pumps typically cut pool heating costs by 70% or more compared with electric heaters.
Request Datasheet →

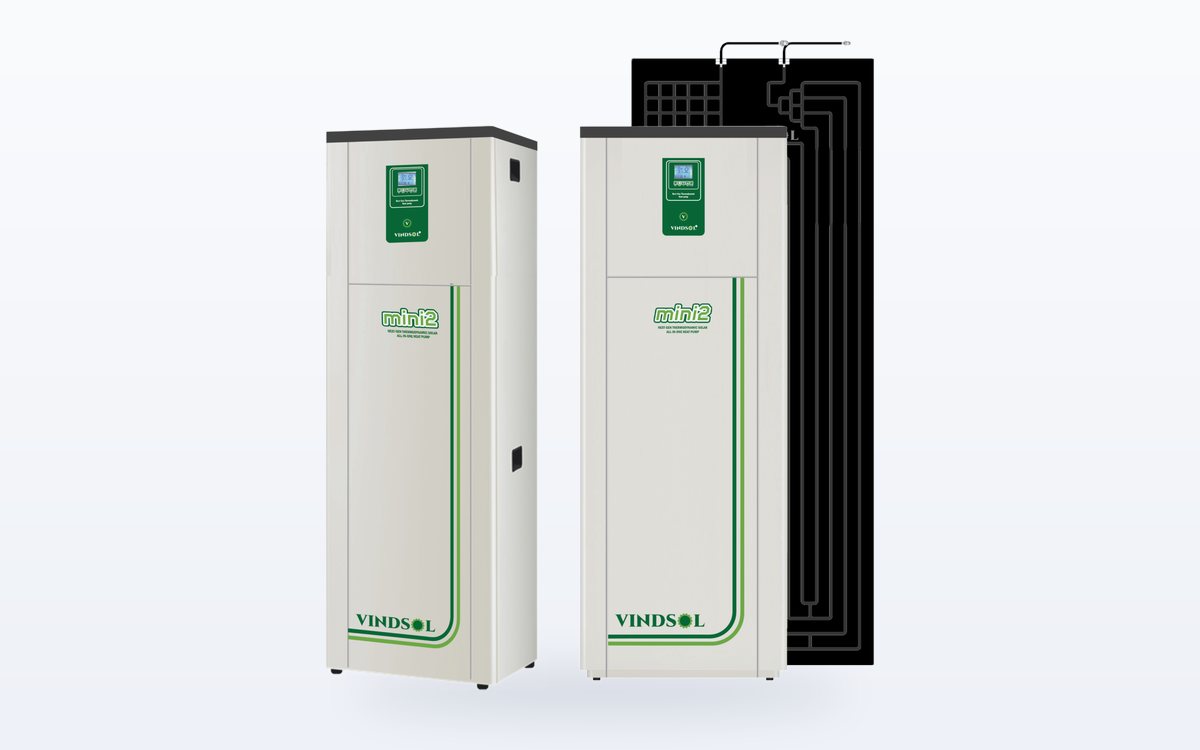

06200 / 300 L tank · 3.49 / 4.75 kW heat
A thermodynamic solar panel absorbs heat from sunlight, air, wind and rain, and a small compressor moves it into a built-in tank. It works at night and on cloudy days, and the panel needs no direct sun.
Request Datasheet →

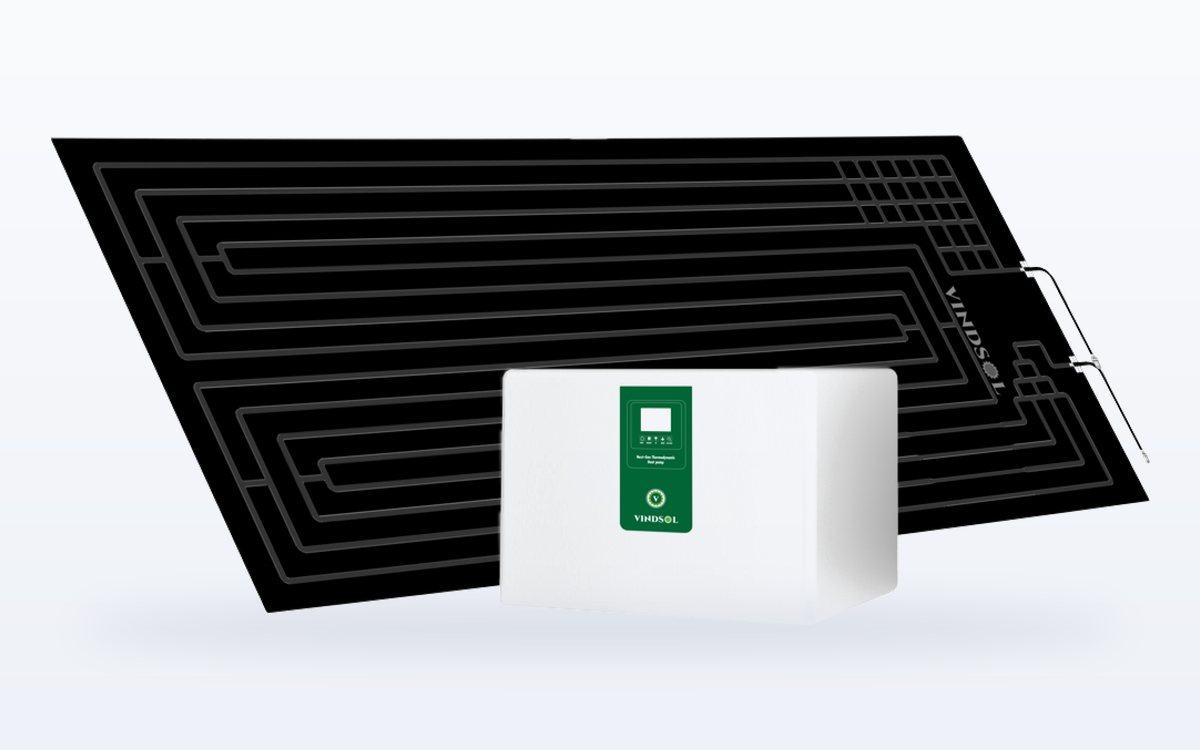

075 models · 3.6 – 24.2 kW heat output
Thermodynamic solar systems for large hot water volumes in hotels, resorts, shopping centres, schools and industry. Panels fit on walls, facades or roofs and weigh only 8 kg each.
Request Datasheet →
08250 – 500 L · up to 95 °C
Premium CRC steel inner tanks with 250 – 350 micron glass enamel fired at 850 – 870 °C, 50 mm PUF insulation and a pre-coated GI outer casing. Suited to hard and bore-well water; overnight heat loss is only 2 – 3 °C.
Request Datasheet →

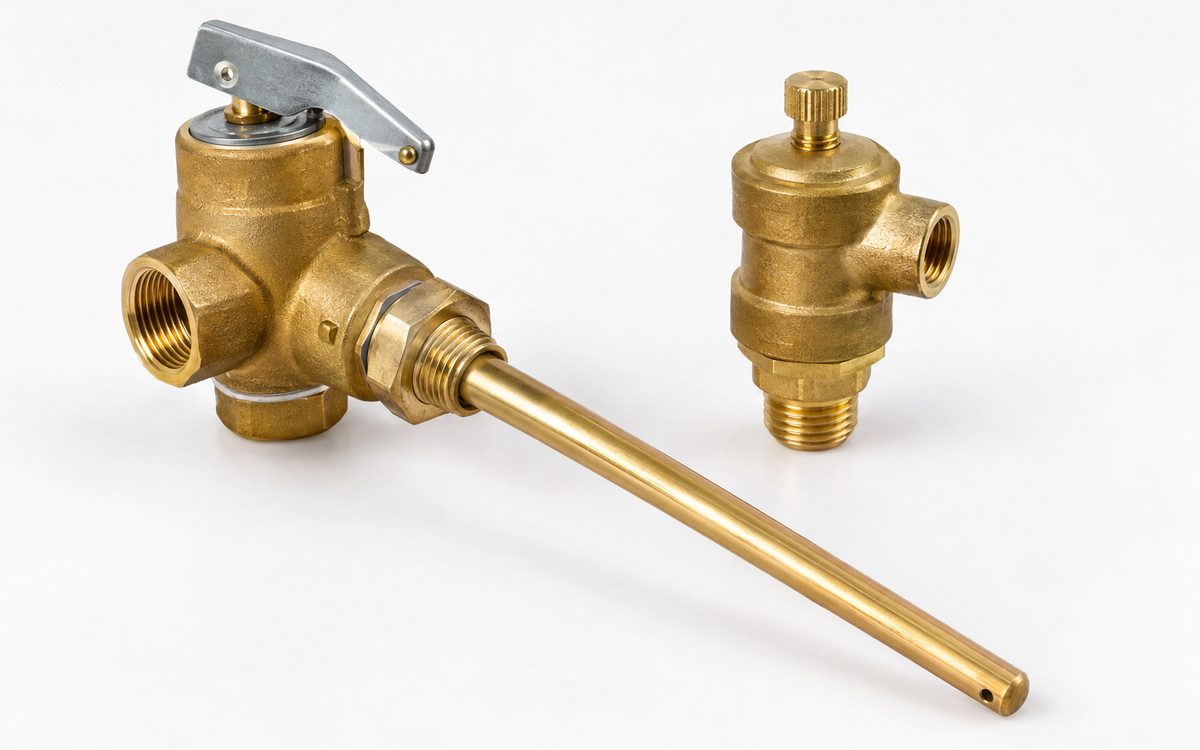

09Temperature & pressure relief and vacuum relief valves
Valves that protect pressurised hot water tanks and heat pump systems from over-temperature, over-pressure and vacuum collapse when the tank is drained.
Request Datasheet →HOW A HEAT PUMP WORKS
Ambient heat → Refrigerant → Compressor → Hot water
A heat pump takes free heat from the outside air, which is renewed by the sun, and uses a small amount of electricity to raise it to a useful temperature. That is why it delivers up to five units of heat for every unit of electricity, where an electric geyser delivers one. The thermodynamic solar version collects that heat through a panel instead of a fan.
Model Selection Guide →AIR SOURCE HEAT PUMP CYCLE
THERMODYNAMIC SOLAR CYCLE
QUICK SELECTION GUIDE
| Series | Type | Heating Capacity | Output / Performance | Power Supply & Input | Typical Use |
|---|---|---|---|---|---|
| VDHP MB | Domestic monoblock | 3.2 – 10.2 kW | 80 – 250 L/h at 55 °C | 220 V 1-ph · 0.7 – 2.7 kW | Homes, villas, small hotels |
| VCHP | Commercial & industrial | 11.4 – 89.9 kW | 55 – 61 °C outlet | 380 V 3-ph · 3.0 – 26.2 kW | Hotels, hospitals, hostels, factories |
| VSP | Spa & pool | 4.5 – 13.5 kW | COP 5.36 – 5.62 · max 55 °C | 220 V 1-ph · 0.8 – 2.4 kW | Spas, hot tubs, small pools |
| VCSP | Swimming pool, heating & chilling | 13.5 – 137.2 kW heat 12.3 – 123.3 kW cooling | COP 5.06 – 5.72 | 220 V 1-ph or 380 V 3-ph · 2.4 – 27.1 kW | Hotels, clubs, villas, schools |
| TDHP All-in-One | Thermodynamic solar, domestic | 3.49 / 4.75 kW | 200 / 300 L tank at 55 °C | 230 V 1-ph · 650 / 890 W | Homes, villas |
| TDHP Commercial | Thermodynamic solar, commercial | 3.6 – 24.2 kW | 55 – 60 °C, any volume with tanks | 230 V or 415 V · 0.9 – 5.2 kW | Hotels, resorts, malls, schools, industry |
| QuartzBlue | Glass-lined storage tank | – | 250 – 500 L · up to 95 °C · 4 – 5 bar | – | All heat pump & solar systems |
Domestic, thermodynamic and tank data are from Vindsol's website and catalogue. Commercial and pool figures are from published Vindsol model tables. Ratings depend on test conditions (ambient and inlet water temperature); final selection depends on daily hot water demand, required temperature, pool size and site climate.
INDUSTRIES WE SERVE
A quick guide to the Vindsol products typically used in each sector. We confirm the final selection after a hot water demand study.
| Industry | Typical Uses | Domestic Heat Pumps | Commercial & Industrial | Swimming Pool | Spa & Hot Tub | Thermodynamic Solar | Storage Tanks |
|---|---|---|---|---|---|---|---|
| Homes & Villas | Bathrooms, kitchens, private pools | ● | – | ○ | ○ | ● | ● |
| Apartments & Townships | Central hot water, clubhouse pools | ● | ● | ○ | ○ | ● | ● |
| Hotels & Resorts | Rooms, laundry, kitchens, pools, spas | ○ | ● | ● | ● | ● | ● |
| Hospitals & Healthcare | Wards, OTs, CSSD, laundry | – | ● | – | – | ○ | ● |
| Hostels & Education | Hostels, campuses, sports pools | ○ | ● | ○ | – | ● | ● |
| Sports Clubs & Gyms | Showers, pools, steam & spa | – | ● | ● | ● | ○ | ● |
| Spas & Wellness Centres | Hot tubs, therapy pools, showers | ○ | ○ | ● | ● | ○ | ● |
| Commercial Kitchens & Laundries | Dish washing, laundry, cleaning | – | ● | – | – | ● | ● |
| Factories & Process | Process hot water, canteens, washing | – | ● | – | – | ○ | ● |
| Labour Camps & Staff Housing | Large shower blocks | – | ● | – | – | ○ | ● |
ABOUT THE BRAND

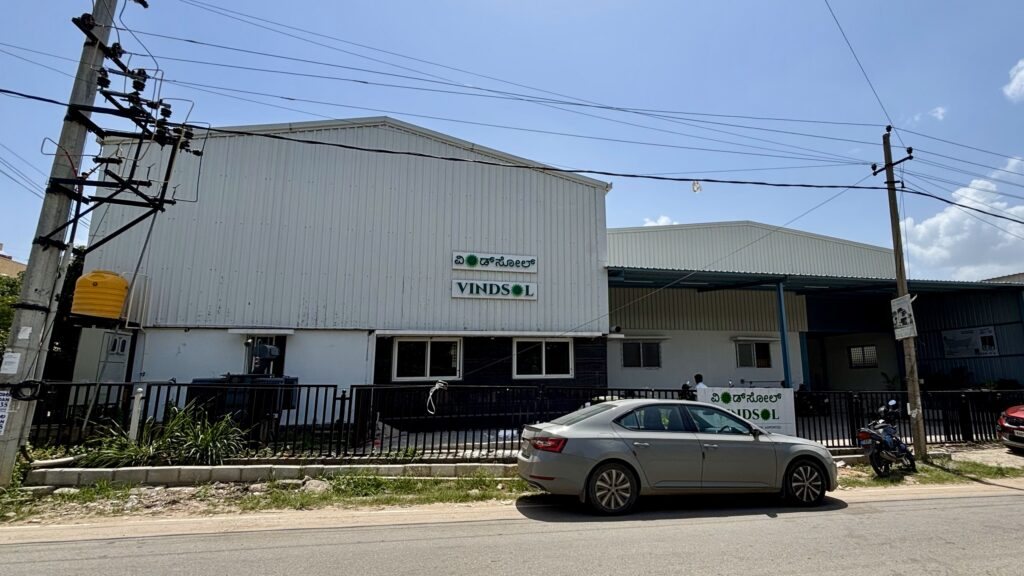

Vindsol heat pumps are designed, developed and manufactured in India by Mechzephyr Engineering Pvt. Ltd., Bangalore. The company has its own design, R&D and manufacturing for the complete range of domestic, commercial and swimming pool heat pumps.
Mission: reliable and quality design, customer-centric service, technology for the future and environmental responsibility.

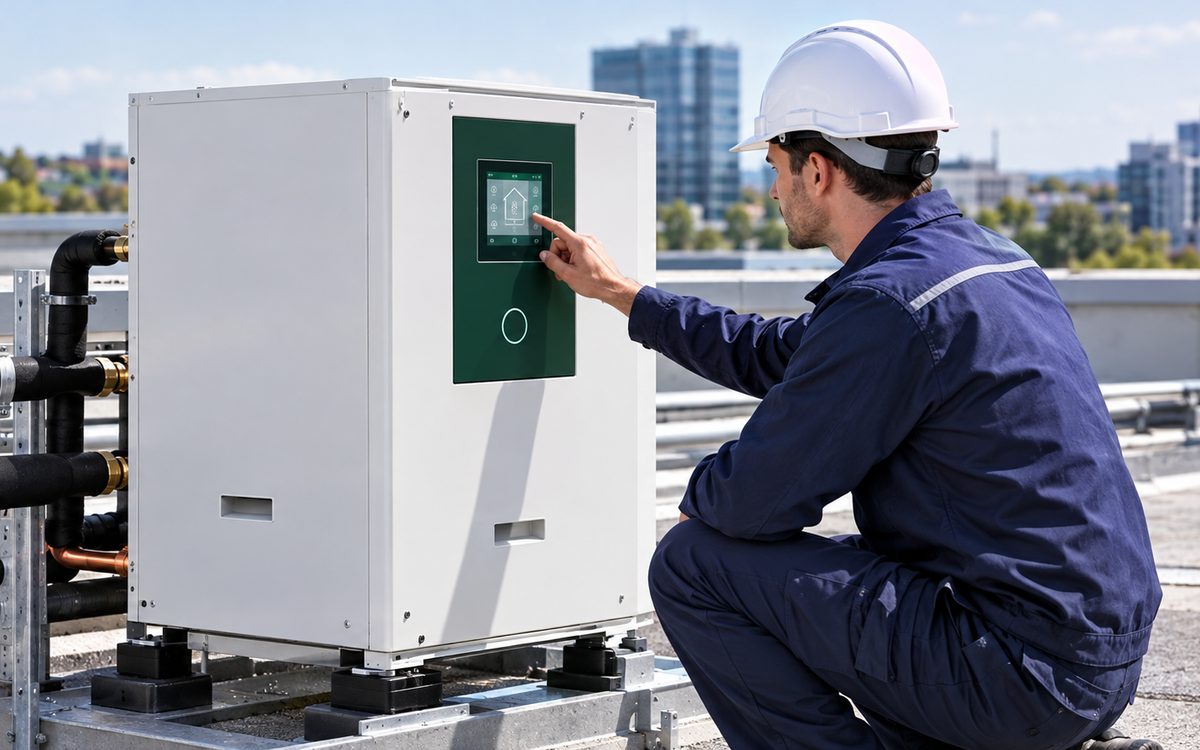

Why Choose Vindsol with Wateria
60–75% less than electric heating.
Day, night, rain or overcast.
No fossil fuel, much lower CO₂.
Service life of 10–15 years.
Wi-Fi app and self-diagnostics.
Wateria service teams in India & UAE.
HOW WATERIA SUPPORTS YOU
Daily litres, temperatures, peak demand and existing heaters.
Heat pump model, storage tanks and pool or spa heat load.
Vindsol units, tanks, piping and safety valves.
Controller set-up, Wi-Fi app and performance checks.
Coil cleaning, tank anode checks, spares and annual contracts.
Cut your water heating bill by up to 75%.
Tell us how much hot water you use each day, the temperature you need, or your pool size. Our team will size the right Vindsol heat pump and storage, estimate your savings and send a techno-commercial offer.
