HVAC FILTERS | HEPA & CLEAN ROOM | INDUSTRIAL AIR FILTRATION
A complete range of air filters and filtration systems, from G3 pre-filters to U16 ULPA filters, for commercial buildings, hospitals, pharma, electronics, automotive paint shops, power plants and heavy industry. Wateria Technovation selects, supplies, installs, tests and maintains air filtration systems across India and the Middle East.
Air Quality Audit · Filter Selection · Supply · Installation · Testing & Validation · Filter Management
THE RIGHT FILTER AT EVERY STAGE OF THE AIR STREAM
AIR FILTER RANGES
From washable pre-filters on a fan coil to scan-tested ULPA filters over a semiconductor line and multi-stage intake systems on a gas turbine. We select media, efficiency class, frame and housing for your air flow, dust load, temperature and cleanliness target.

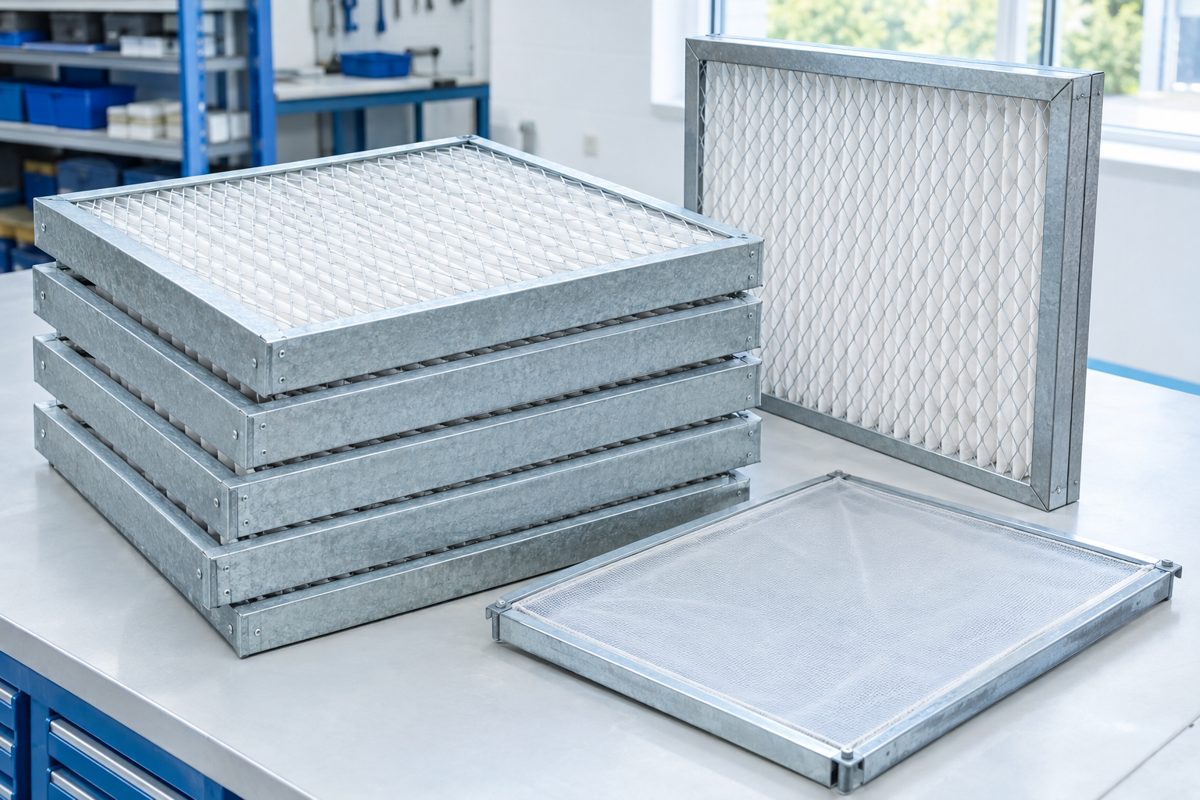

01G3 – M5 · EN 779 / ISO Coarse
Panel and box pre-filters with synthetic, non-woven or compressed felt media, cardboard-frame pleated filters and washable nylon mesh filters. The first line of defence for AHUs, fan coils and intake louvres.
Request Datasheet →

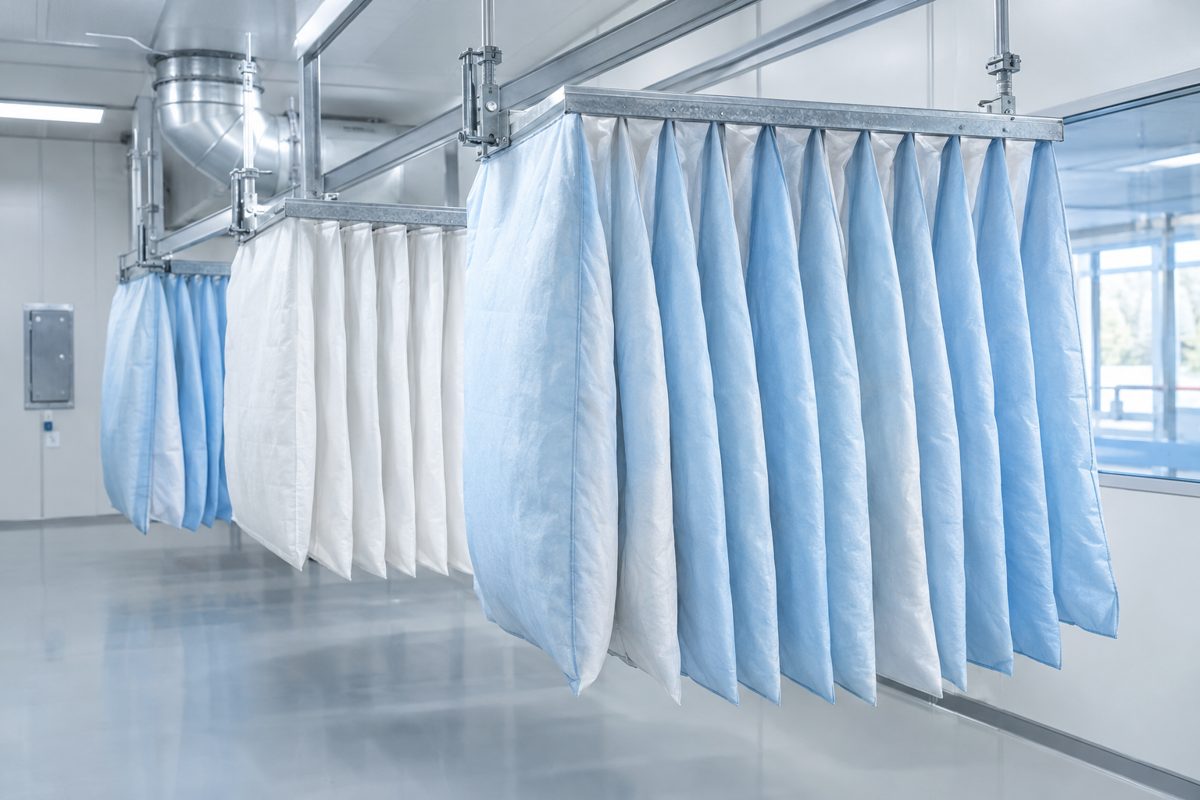

02G3 – F9 · synthetic, meltblown & fibreglass
Multi-pocket filters with welded or stitched pockets that inflate evenly for high dust holding and low pressure drop. Includes reverse-flow coalescing pockets for gas turbine intakes and pocket cubes for paint booths.
Request Datasheet →

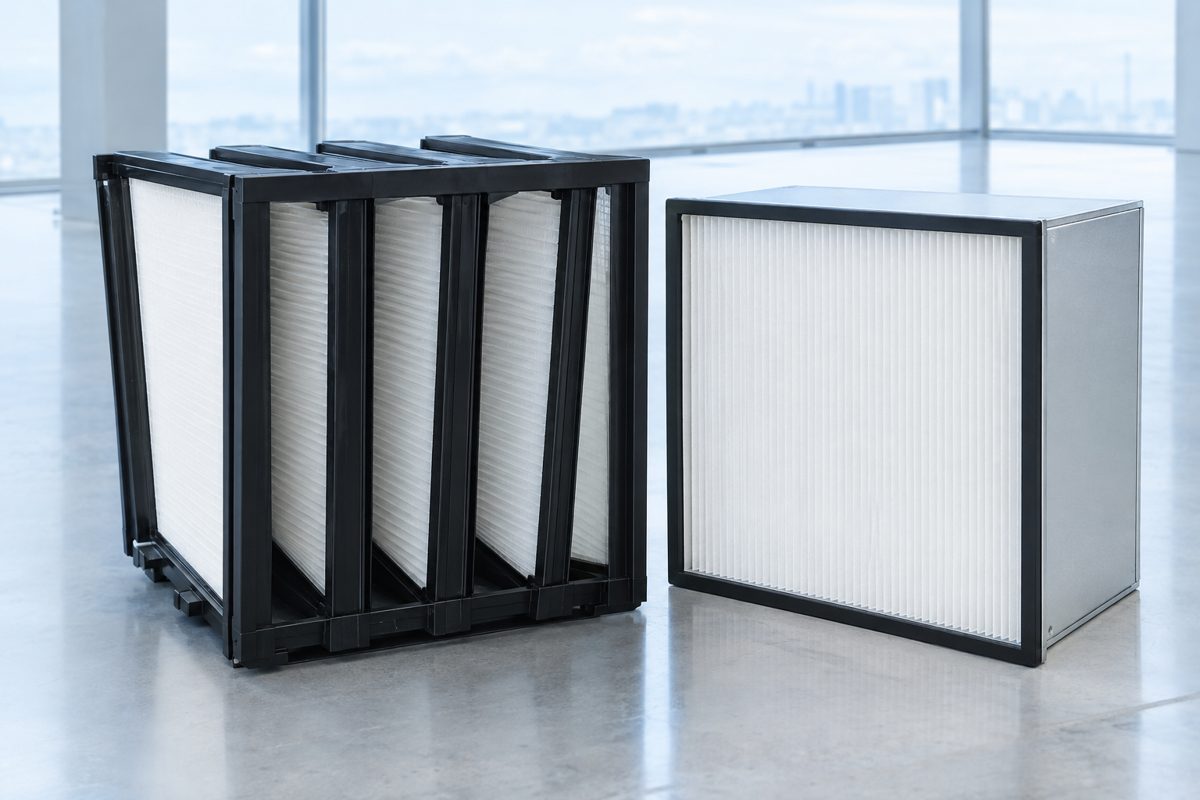

03M6 – F9 · deep pleat, mini-pleat & V-bank
Rigid fine filters with glass-fibre media in deep-pleat, hot-melt mini-pleat and V-bank formats. A very high media area gives long life, low energy use and moisture resistance, ideal as final filters in comfort and process HVAC.
Request Datasheet →

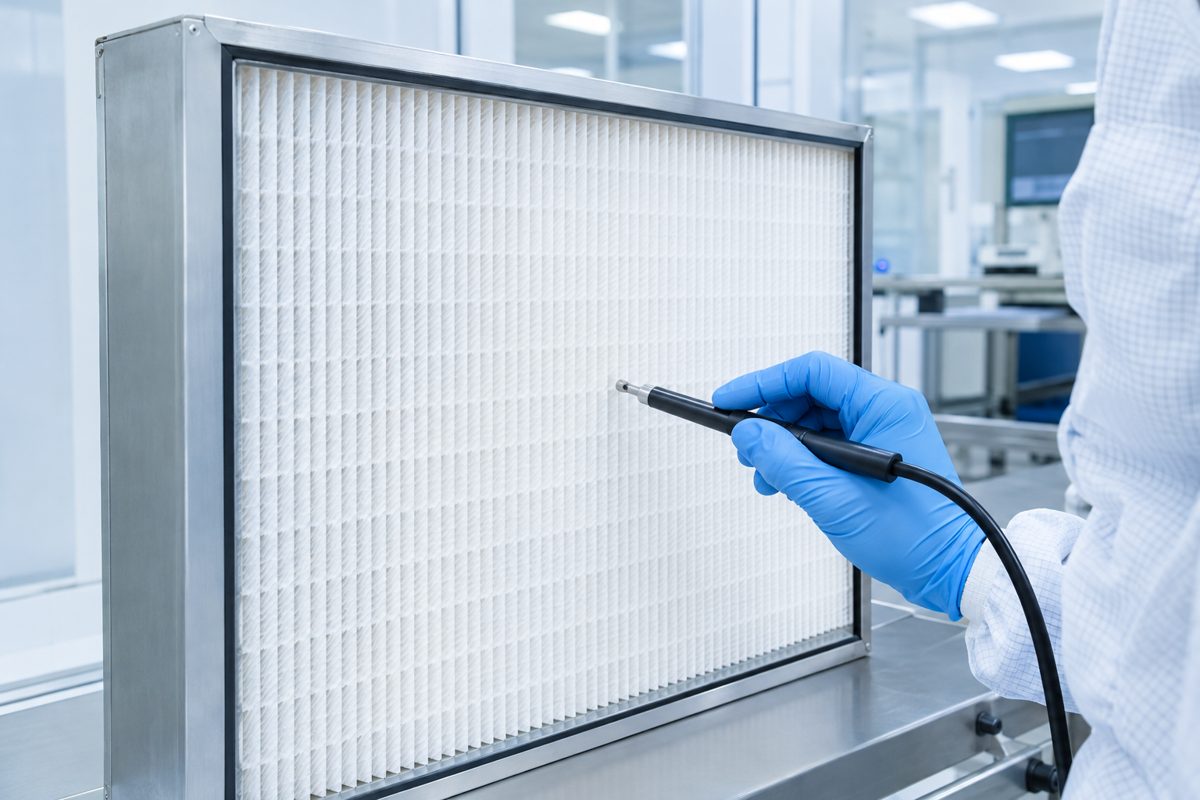

04E10 – U16 · EN 1822 · 99.95% to 99.99995%
Absolute filters with wet-laid micro-glass or PTFE membrane media, in deep-pleat with aluminium separators, mini-pleat, V-bank and gel-seal designs. Each filter can be factory scan-tested for leak-free performance.
Request Datasheet →

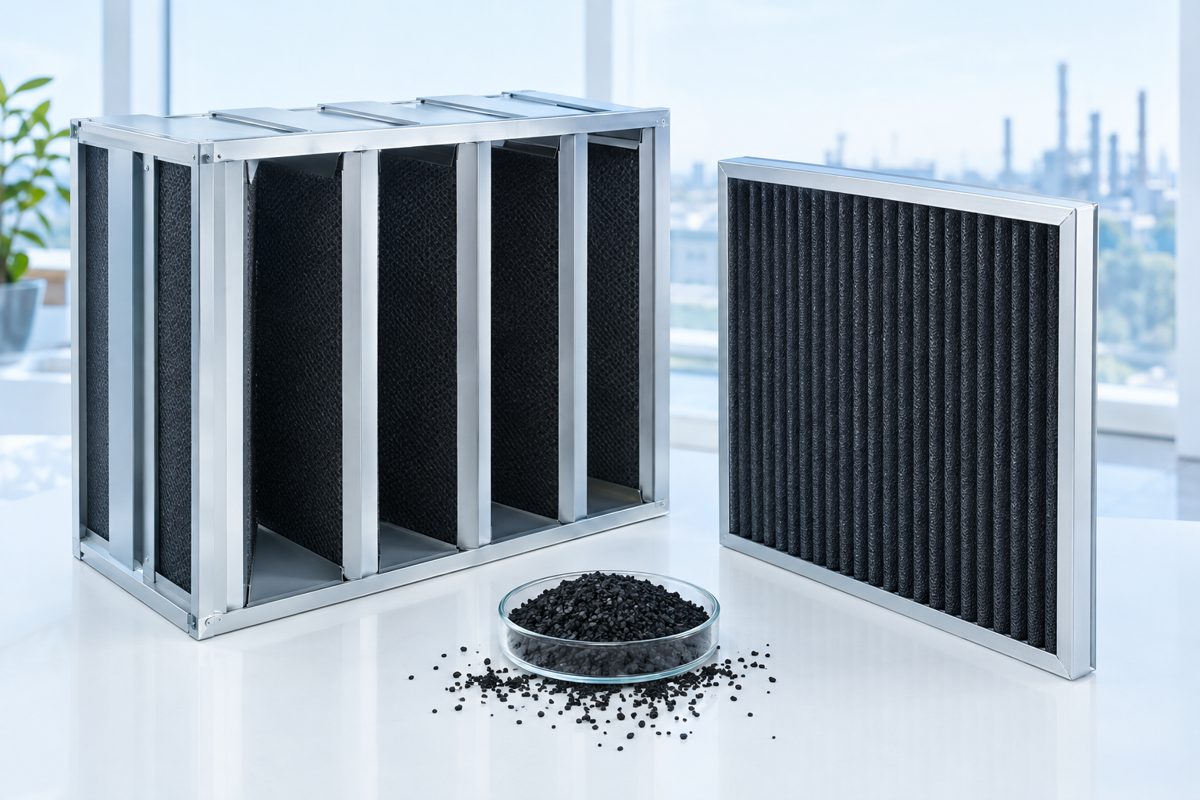

05Odour, VOC, SOx, NOx & ozone removal
Carbon V-bank, carbon pocket and carbon-impregnated panel filters that combine particle filtration with gas adsorption. Used for indoor air quality, kitchen exhausts, airports, labs and corrosion-sensitive control rooms.
Request Datasheet →

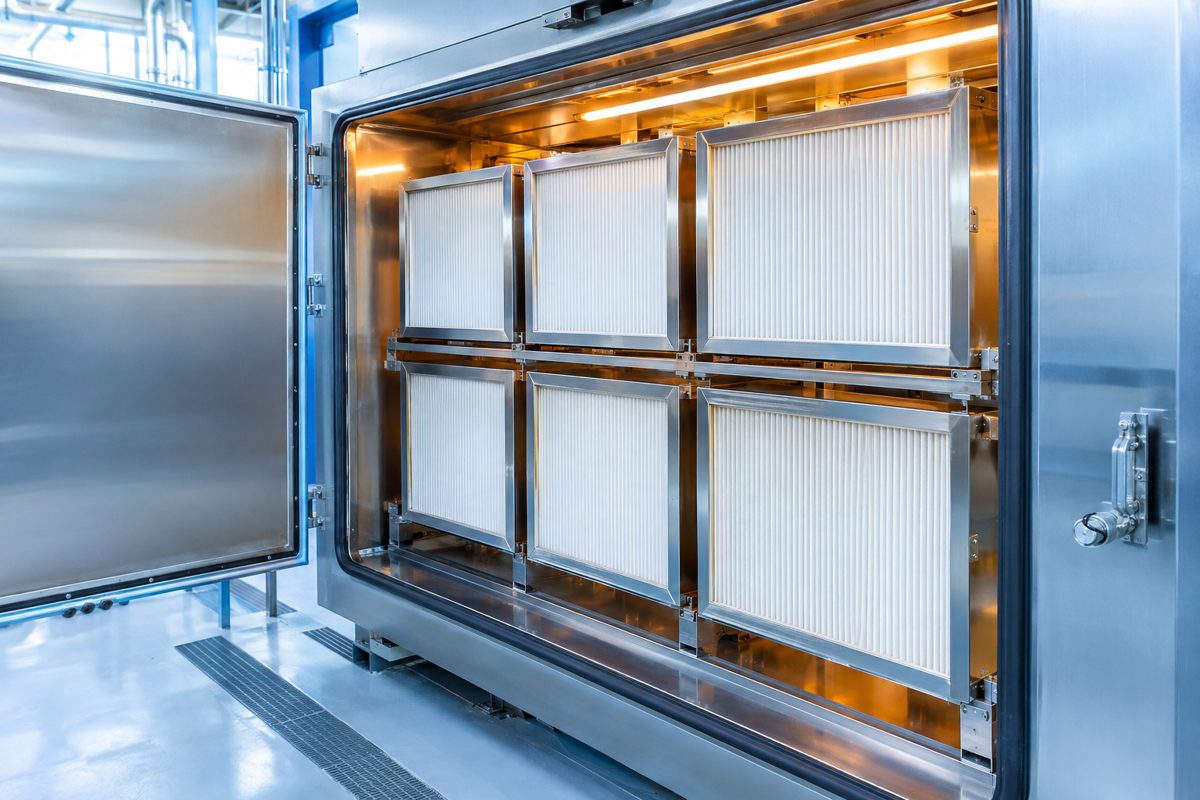

06Up to 450 °C continuous · peaks up to 555 °C
Deep-pleat and mini-pleat ASHRAE and HEPA filters with metal frames and silicone-free glass-fibre media, plus glass-fibre oven filters and media. Built for curing ovens, sterilising tunnels and hot exhaust air.
Request Datasheet →

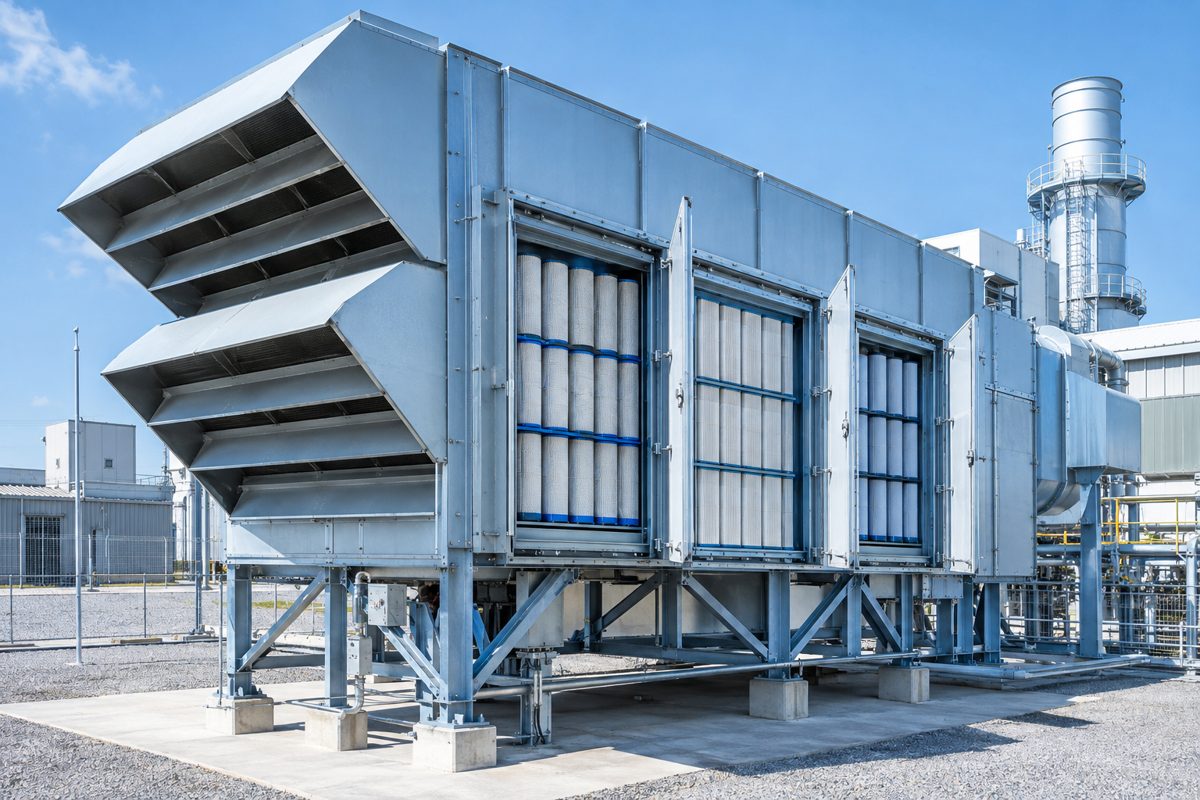

07Static, pulse-jet & anti-icing filter houses
Complete intake systems for gas turbines, compressors and large engines: weather hoods, inertial separators, coalescing pre-filters, static or self-cleaning pulse cartridge stages, anti-icing and silencers.
Request Datasheet →

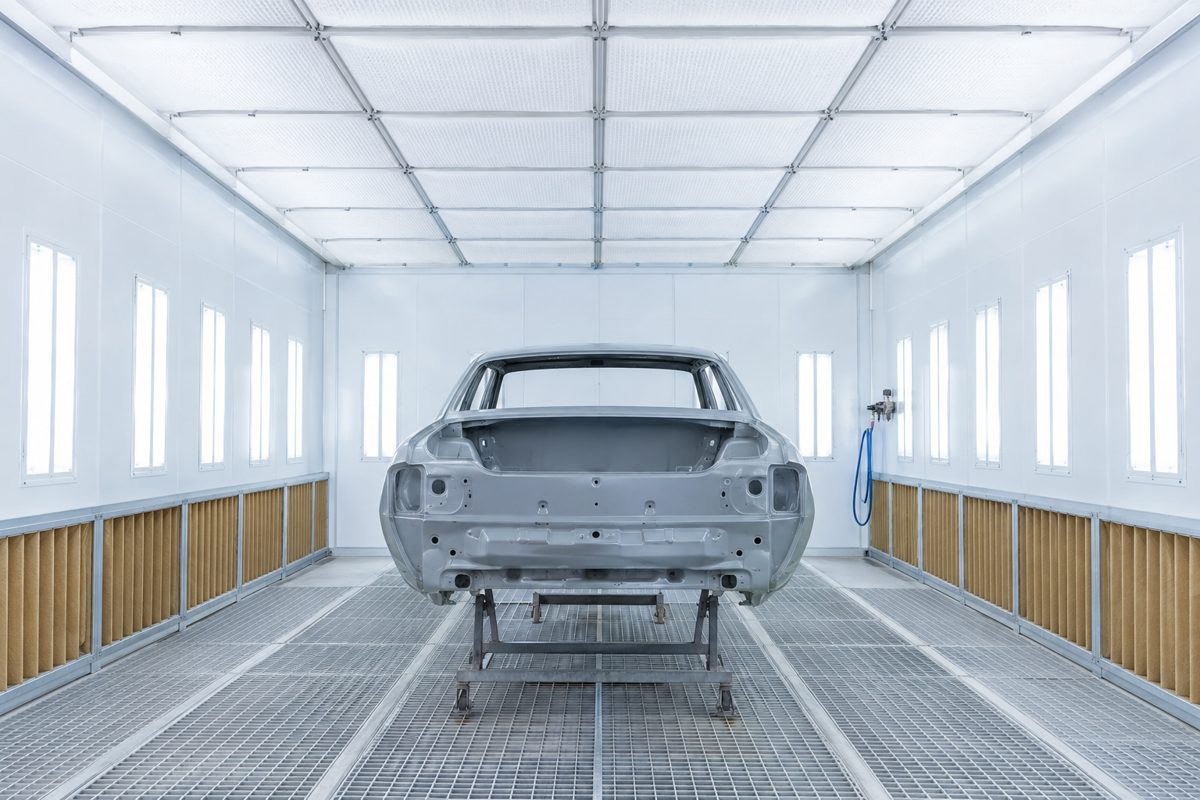

08Spray booths & surface finishing
Pleated kraft-paper and multi-layer overspray collectors, glass-fibre paint stop mats, paint boxes and polyester ceiling diffusion media for automotive OEM and refinishing booths, plus wax booth pads.
Request Datasheet →

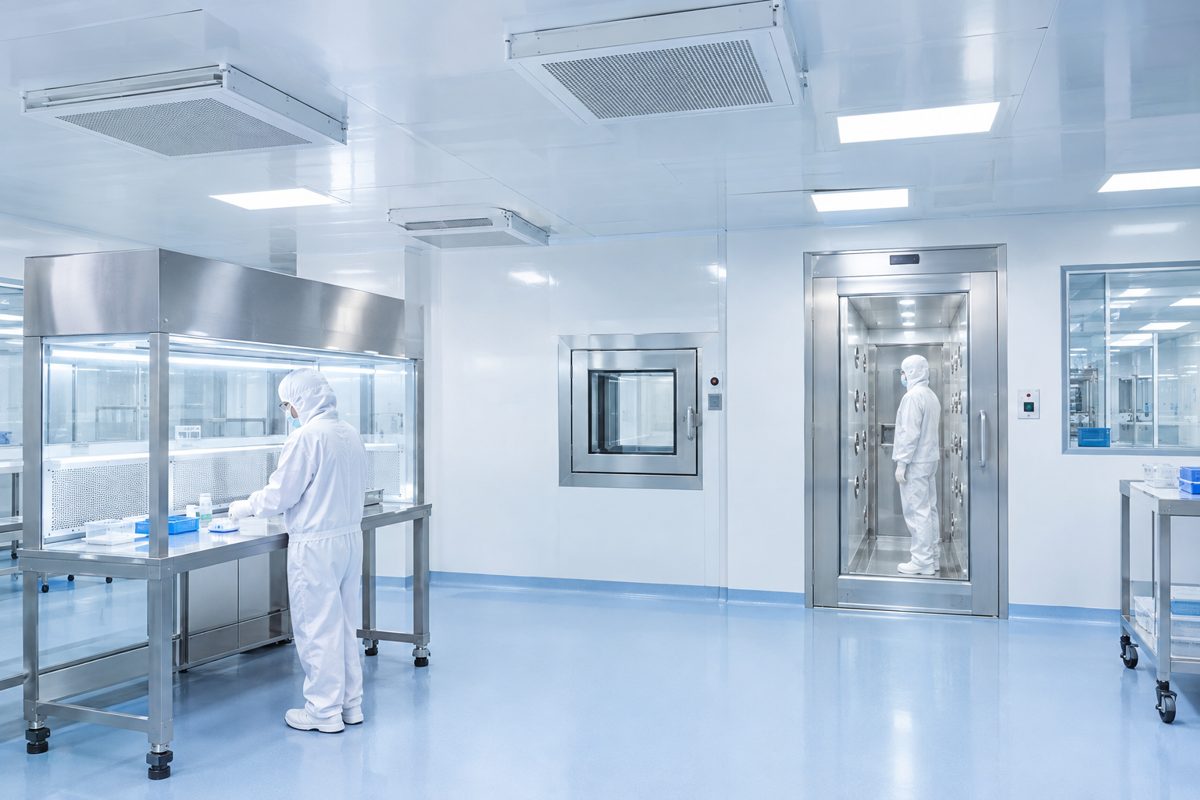

09ISO 5 – ISO 8 · pharma, healthcare & electronics
Fan filter units, HEPA terminal modules, laminar air flow benches, OT plenums, pass boxes, air showers, air curtains, biosafety cabinets, garment cabinets and sterile trolleys, with HEPA filters to suit.
Request Datasheet →

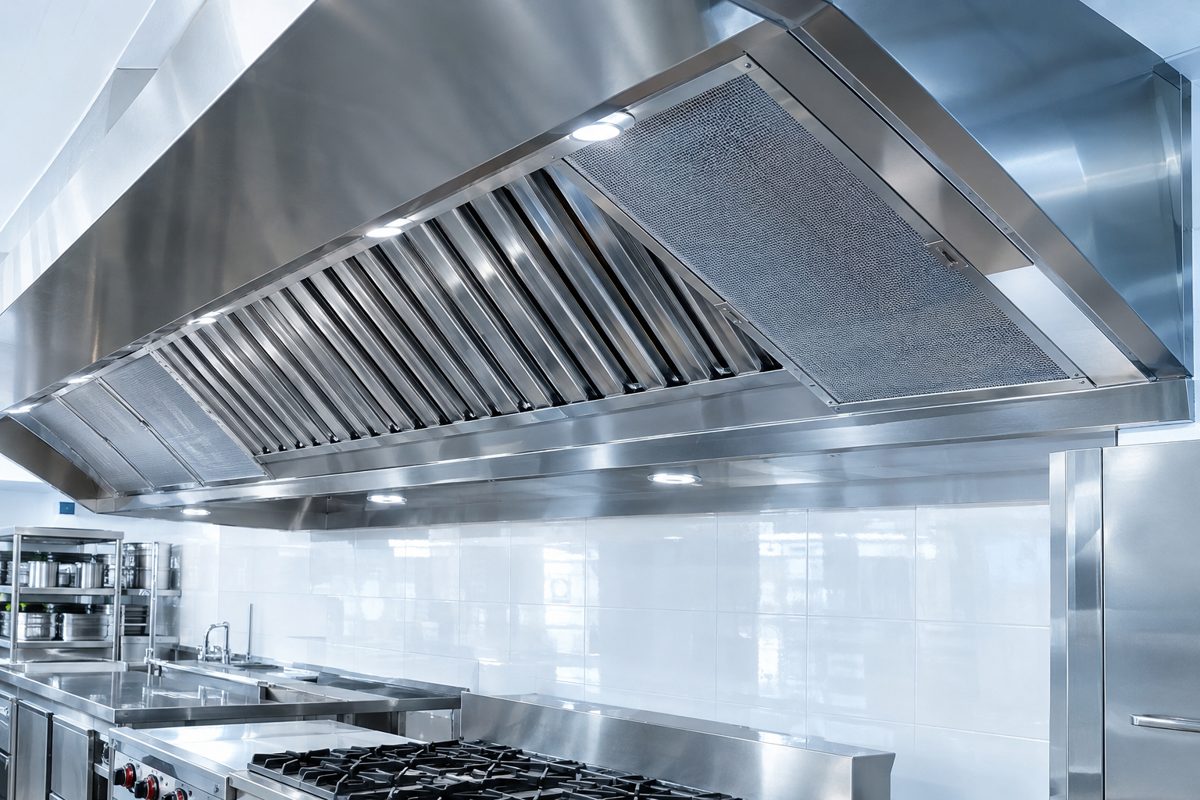

10Commercial kitchens, vehicles & appliances
Stainless steel baffle filters, grease collectors, aluminium foil mesh and metallic wire mesh filters, reticulated foam media, auto roll filters, air purifier filters and vehicle air filters.
Request Datasheet →

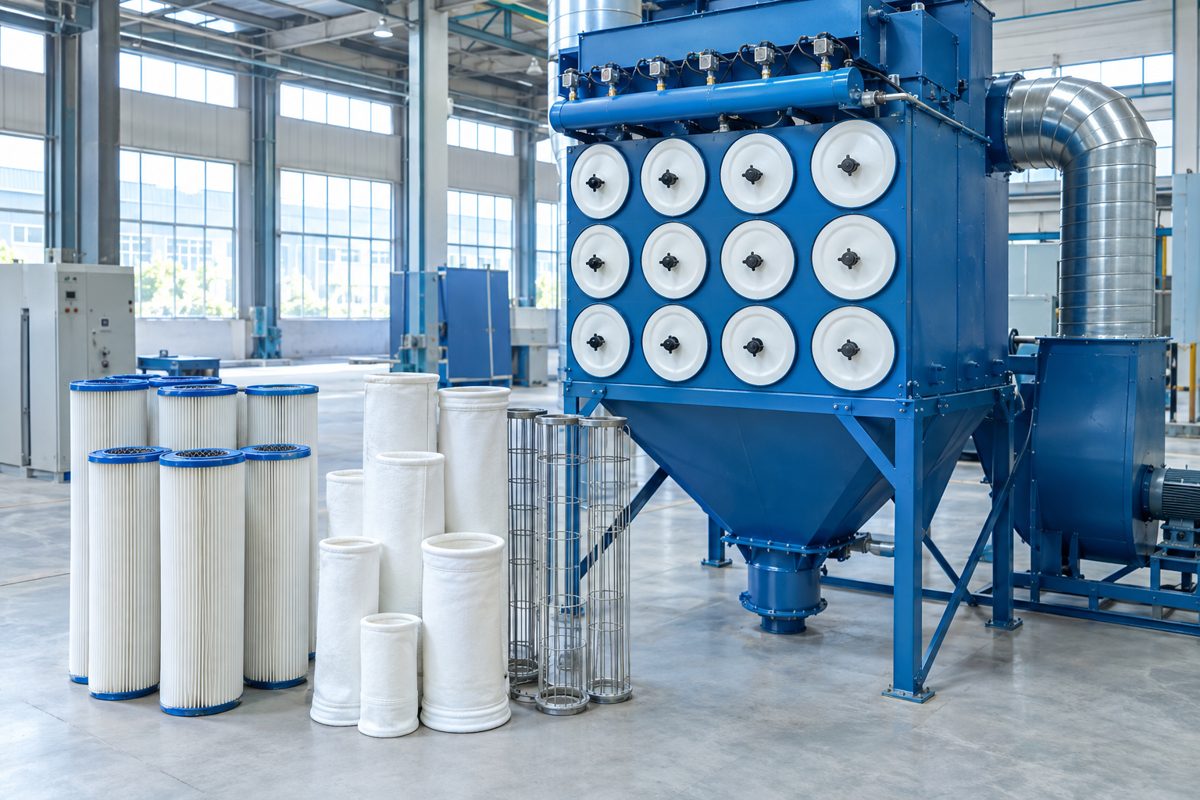

11Filter bags, cages, cartridges & BIBO
Felt and woven filter bags with matching cages, pulse-jet cartridge systems and Bag-In / Bag-Out containment housings for handling hazardous dust safely during filter change.
Request Datasheet →

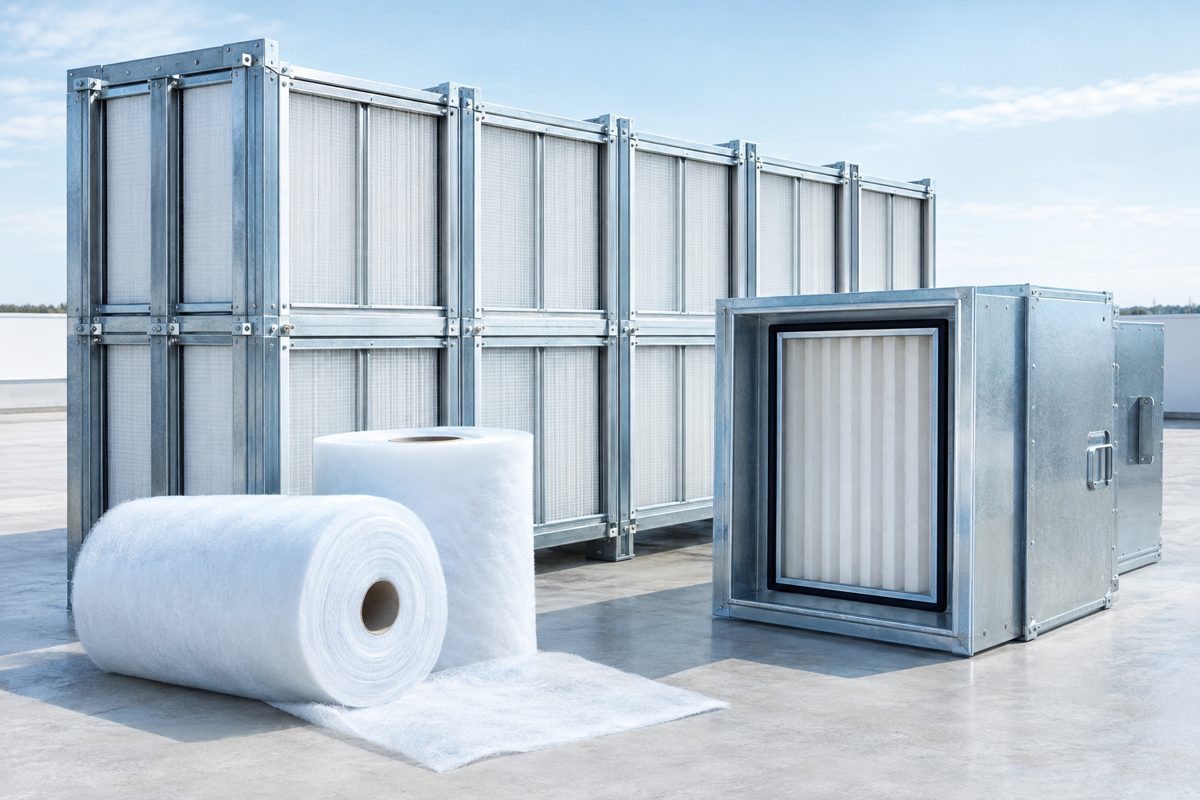

12Frames, housings, rolls & pads
Universal and absolute filter holding frames, HEPA seal housings, conduit housings, filter media in rolls and pads (synthetic, glass fibre, demister) and custom light metal fabrication for filter banks.
Request Datasheet →HOW STAGED FILTRATION WORKS
Coarse → Fine → Absolute
Pre-filters catch large dust and insects so that fine filters last longer. Fine filters remove PM10 and PM2.5 to protect coils, fans and occupants. HEPA or ULPA filters at the end of the line capture sub-micron particles and microbes for clean rooms and critical areas. Getting the staging right lowers pressure drop, saves fan energy and extends the life of the most expensive filters.
Filter Grades Explained →HVAC & CLEAN ROOM AIR
GAS TURBINE AIR INTAKE
QUICK SELECTION GUIDE
| Grade | Standard & Approx. ISO 16890 | What It Captures | Typical Filter Types | Typical Use |
|---|---|---|---|---|
| G3 – G4 | EN 779 · ISO Coarse | Coarse dust, insects, fibres (>10 µm) | Panel, mesh, pleated pre-filters, rolls | Pre-filter for AHUs, FCUs, intakes |
| M5 – M6 | EN 779 · ePM10 50–70% | Pollen, fine dust, PM10 | Pocket, pleated panel filters | Comfort HVAC, second stage |
| F7 – F9 | EN 779 · ePM1 50–90% | PM2.5, PM1, bacteria carriers | Pocket, ASHRAE deep / mini-pleat, V-bank | Final filter in offices, hospitals, food |
| E10 – E12 | EN 1822 · 85% – 99.5% @ MPPS | Sub-micron particles | EPA deep / mini-pleat, V-bank | Pre-HEPA, gas turbines, process air |
| H13 – H14 | EN 1822 · 99.95% – 99.995% @ MPPS | Bacteria, viruses on particles, 0.3 µm | HEPA mini-pleat, gel seal, terminal modules | Clean rooms, OTs, pharma, labs |
| U15 – U16 | EN 1822 · ≥ 99.9995% @ MPPS | Ultra-fine particles | ULPA micro-glass or PTFE membrane | Semiconductor, ISO 3 – 4 areas |
EN 779 grades are shown because they are still widely used on drawings; ISO 16890 equivalents are approximate. MPPS = most penetrating particle size. Final selection depends on air flow, dust load, temperature, humidity and the required cleanliness class.
INDUSTRIES WE SERVE
A quick guide to the filter families typically used in each sector. Every site is different, so we confirm the final selection after an air quality audit.
| Industry | Typical Areas | Pre-Filters | Pocket Filters | ASHRAE & V-Bank | HEPA & ULPA | Carbon | High Temp | Air Intake | Paint Arrestors | Clean Room Equip. | Kitchen & Grease | Dust Collection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Commercial & Public Buildings | Offices, malls, airports, metro | ● | ● | ● | ○ | ● | – | – | – | – | ○ | – |
| Hotels & Hospitality | Rooms, lobbies, kitchens | ● | ● | ● | – | ○ | – | – | – | – | ● | – |
| Hospitals & Healthcare | OTs, ICUs, isolation, labs | ● | ● | ● | ● | ○ | – | – | – | ● | ○ | – |
| Pharmaceuticals | Sterile, OSD and API areas | ● | ● | ● | ● | ○ | ● | – | – | ● | – | ● |
| Electronics & Data Centres | Semiconductor, PCB, server halls | ● | ● | ● | ● | ● | – | – | – | ● | – | – |
| Automotive & Surface Finishing | Paint shops, curing ovens | ● | ● | ● | ○ | ○ | ● | – | ● | – | – | ○ |
| Food & Beverage | Processing, packing, bakeries | ● | ● | ● | ● | ○ | ● | ○ | – | – | ● | ○ |
| Oil, Gas & Chemical | Control rooms, compressors, turbines | ● | ● | ● | ○ | ● | ○ | ● | – | – | – | ● |
| Energy & Power | Gas turbines, control rooms | ● | ● | ● | ○ | ● | – | ● | – | – | – | ○ |
| Manufacturing & Materials | Cement, steel, textiles, plastics | ● | ● | ○ | – | ○ | ○ | – | ○ | – | – | ● |
Why Choose Wateria Air Filters
Pre-filters to ULPA, housings and equipment.
EN 779, ISO 16890 and EN 1822 grades.
Low pressure drop media cuts fan power.
Based on air flow, dust load and class.
HEPA leak tests and clean room validation.
Scheduled replacement and AMC in India & UAE.
HOW WATERIA SUPPORTS YOU
Air flows, dust load, existing filters and cleanliness targets.
Grades, media, sizes, frames and housings for each stage.
Filters, holding frames, housings and clean room equipment.

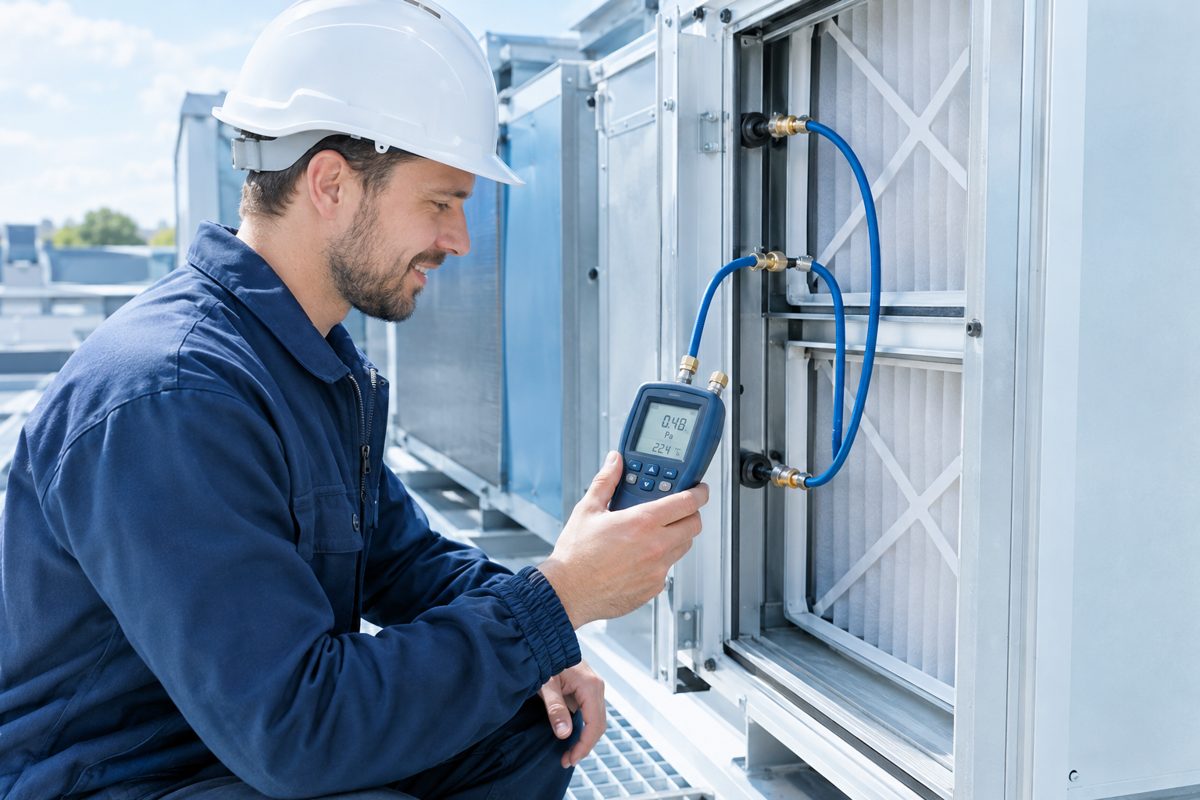

Pressure drop checks, HEPA leak tests and particle counts.
Change-out schedules, spares stocking and AMC.
Let's specify the right filtration for every stage.
Share your filter sizes and grades, air flow, application or cleanliness class. Our team will recommend the right filters, housings or clean room equipment and send a techno-commercial offer.
